Die stamping plays an indispensable role in manufacturing industries, enabling the efficient production of metal components for various applications. Among the most prominent stamping techniques are progressive die stamping and transfer die stamping, each offering unique benefits tailored to specific manufacturing needs. These processes are essential for creating precise and durable metal parts in industries such as automotive, aerospace, and appliances.
Understanding the differences between these two methods is vital for manufacturers aiming to optimize production efficiency, reduce costs, and meet specific design requirements. This article provides a comprehensive comparison, covering everything from workflow and design to cost and application, to help you make an informed choice for your projects.

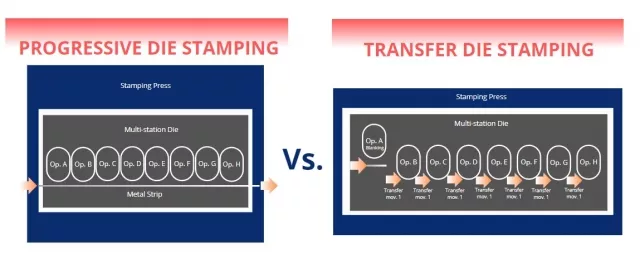

Progressive Die Stamping vs Transfer Die Stamping
Progressive die stamping and transfer die stamping are two advanced techniques used to shape metal into precise components. While both involve a series of operations, their workflows and applications are distinct.
Progressive Die Stamping operates as a continuous process. A metal strip passes through a series of stations, each performing a unique operation, such as cutting, bending, or forming. The part remains attached to the strip until the final step, where it is separated. This method is best suited for high-speed production of smaller parts with repetitive designs, offering excellent efficiency and material utilization.
Transfer Die Stamping, on the other hand, begins by separating the metal blank from the strip. Mechanical or robotic arms transfer the part from one die station to the next, allowing for greater design complexity and operations like deep drawing. This method excels at producing larger, more intricate parts.
The table below summarizes the progressive vs transfer die stamping differences:
| Aspect | Progressive Die Stamping | Transfer Die Stamping |
| Workflow | Continuous feed system | Individual parts transferred between dies |
| Ideal Part Size | Smaller, uniform parts | Larger, complex parts |
| Operations | Limited to in-line processes | Supports complex operations like deep drawing |
| Cost Efficiency | High for large volumes | Higher initial costs but versatile |
| Material Utilization | Excellent due to optimized strip layouts | Moderate, depending on part design |
Key Differences in Workflow and Die Design
Progressive and transfer die stamping differ fundamentally in how they handle materials and execute forming operations. These differences arise primarily from their workflows, die setups, and operational flexibility. Understanding these distinctions is crucial for choosing the right process for specific production goals.
In progressive die stamping, the workflow revolves around a continuous feed system. The metal strip moves sequentially through multiple die stations in a single setup, each performing a specific task. Because all operations are integrated into one die, progressive stamping offers high-speed production with minimal material handling. However, this method is best suited for smaller stamped sheet metal parts, as the die design has limitations in accommodating larger or more complex shapes.

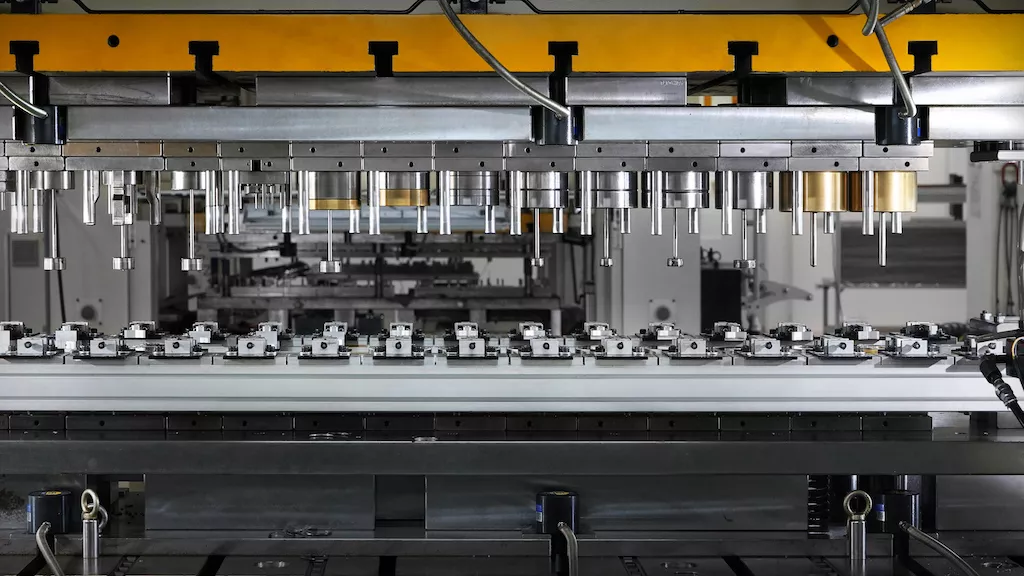

Conversely, transfer die stamping separates the blank early in the process, offering unparalleled flexibility in part handling. This workflow allows manufacturers to perform operations that would be impossible in progressive setups, such as deep drawing, flanging, or reshaping. The use of mechanical transfer systems enables precise placement of the part at each station, ensuring accurate and intricate detailing. Transfer die setups are, therefore, more versatile but require higher initial investments in tooling and robotics.

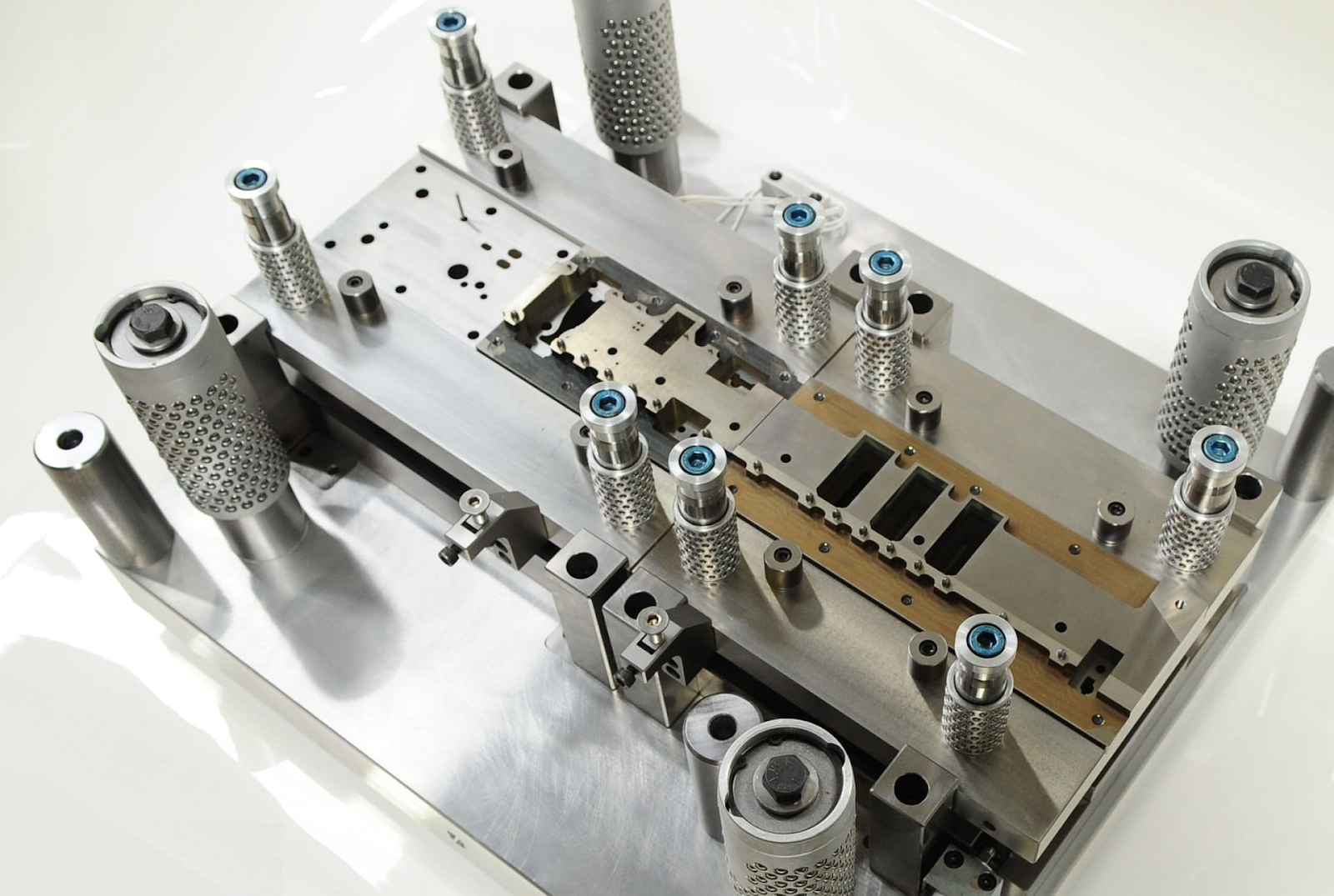

Die design plays a significant role in differentiating these processes. Progressive dies are compact, integrating all operations into one setup, which reduces tooling costs for large volumes. Transfer dies, in contrast, require separate tools for each station, adding to the complexity and cost. Despite these differences, both methods are indispensable for manufacturing industries with diverse production needs.
Advantages of Progressive Dies for High-Speed Production
Progressive die stamping is celebrated for its unmatched speed and efficiency in high-volume production. It leverages a streamlined workflow and precise die design to achieve exceptional output rates. Here are the key advantages of this method:
Streamlined Workflow
The hallmark of progressive die stamping lies in its seamless, streamlined workflow. The metal strip moves through a series of die stations in a continuous feed system, with each station performing a specific operation, such as cutting, bending, or punching. This arrangement eliminates the need to stop production for part transfers, drastically reducing downtime. All operations are integrated within one die setup, ensuring consistent results with minimal interruptions. This efficiency translates to faster production cycles, reduced costs, and the ability to meet tight deadlines. The streamlined workflow is ideal for high-volume production of uniform components where speed and consistency are paramount.
Reduced Labor Requirements
Progressive die stamping relies heavily on automation, significantly reducing the need for manual labor. The entire process—from feeding the metal strip to separating the finished part—is handled by machinery, which minimizes human intervention. This not only reduces labor costs but also improves workplace safety by limiting exposure to hazardous machinery. Automation ensures consistent quality across large production runs, as it eliminates human error. Manufacturers can also reallocate their workforce to more complex tasks, further enhancing overall productivity. Reduced labor requirements make progressive die stamping a cost-effective choice for high-volume projects.
High Output Rates
High-speed production is a defining feature of progressive die stamping. The continuous feed system enables the manufacturing of thousands of parts per hour, making it one of the most efficient metal-forming processes available. Each operation occurs in rapid succession at multiple die stations, ensuring that every part is completed in a single pass. The ability to maintain such high output rates without compromising on precision or quality is invaluable for industries with demanding production schedules. This efficiency helps manufacturers meet deadlines, scale operations, and remain competitive in cost-sensitive markets.
Enhanced Precision
Progressive die stamping offers unparalleled precision, thanks to its integrated operations and carefully engineered die designs. Every station in the progressive die setup is meticulously calibrated to perform specific actions, ensuring that each part meets exact specifications. This level of precision eliminates the need for secondary processing or adjustments, saving both time and resources. Additionally, the consistent alignment of the metal strip throughout the process reduces variability and ensures uniformity across large production runs. Enhanced precision is especially important in industries like automotive and electronics, where component accuracy is critical.
Material Efficiency
One of the key advantages of progressive die stamping is its exceptional material efficiency. By using optimized strip layouts, the process minimizes material waste, ensuring that the metal strip is utilized as effectively as possible. The continuous nature of the workflow further reduces scrap generation, making the process both cost-effective and environmentally friendly. This high level of efficiency allows manufacturers to maximize the value of raw materials, especially when working with expensive metals like stainless steel or aluminum. For businesses aiming to reduce costs while maintaining quality, progressive die stamping’s material efficiency is a significant benefit.
Applications Requiring Transfer Dies for Larger Parts
Transfer die stamping is the preferred choice for producing larger, more intricate parts. Its flexibility and capacity to handle complex operations make it indispensable for certain applications. Below are some examples:
- Automotive Body Panels: Transfer die stamping is ideal for forming large, detailed panels like car doors or hoods, where deep drawing and precise shaping are essential.
- Appliance Components: This method is used to manufacture structural parts for refrigerators, washing machines, and other appliances requiring complex geometries.
- Heavy Equipment Parts: Large structural components for machinery or construction equipment benefit from the versatility of transfer dies.
- Aerospace Components: Intricate aerospace parts, often requiring multiple operations like bending and coining, are well-suited for transfer stamping.
- Custom Industrial Parts: Industries requiring unique designs with multi-directional forming rely on transfer die stamping for flexibility and precision.
Cost and Material Efficiency Comparisons
Cost and material efficiency are critical factors in choosing between progressive and transfer die stamping. Each method has its strengths, depending on production volume, part complexity, and material utilization.
Progressive die stamping is highly cost-efficient for high-volume production. The integration of operations within a single die setup minimizes tooling costs, while the continuous workflow reduces labor expenses. Material utilization is another strength, as optimized strip layouts ensure minimal waste. This efficiency makes progressive stamping the go-to choice for smaller parts produced in large quantities.
In contrast, transfer die stamping incurs higher initial tooling costs due to the need for separate dies and transfer systems. However, this method shines in its versatility, allowing manufacturers to produce complex or larger parts that would be impossible with progressive dies. While material usage may be less efficient, the ability to create intricate designs often outweighs this drawback.
Ultimately, the choice between these methods depends on specific production goals. Manufacturers must weigh the benefits of progressive stamping’s speed and cost efficiency against the flexibility and customization offered by transfer die stamping.
Conclusion
Progressive die stamping and transfer die stamping are essential manufacturing techniques, each with distinct advantages. While progressive stamping prioritizes speed, efficiency, and material utilization for smaller parts, transfer stamping excels in flexibility and the ability to handle larger, more complex designs. By understanding these differences, manufacturers can make informed decisions to optimize production efficiency and achieve their specific goals.
